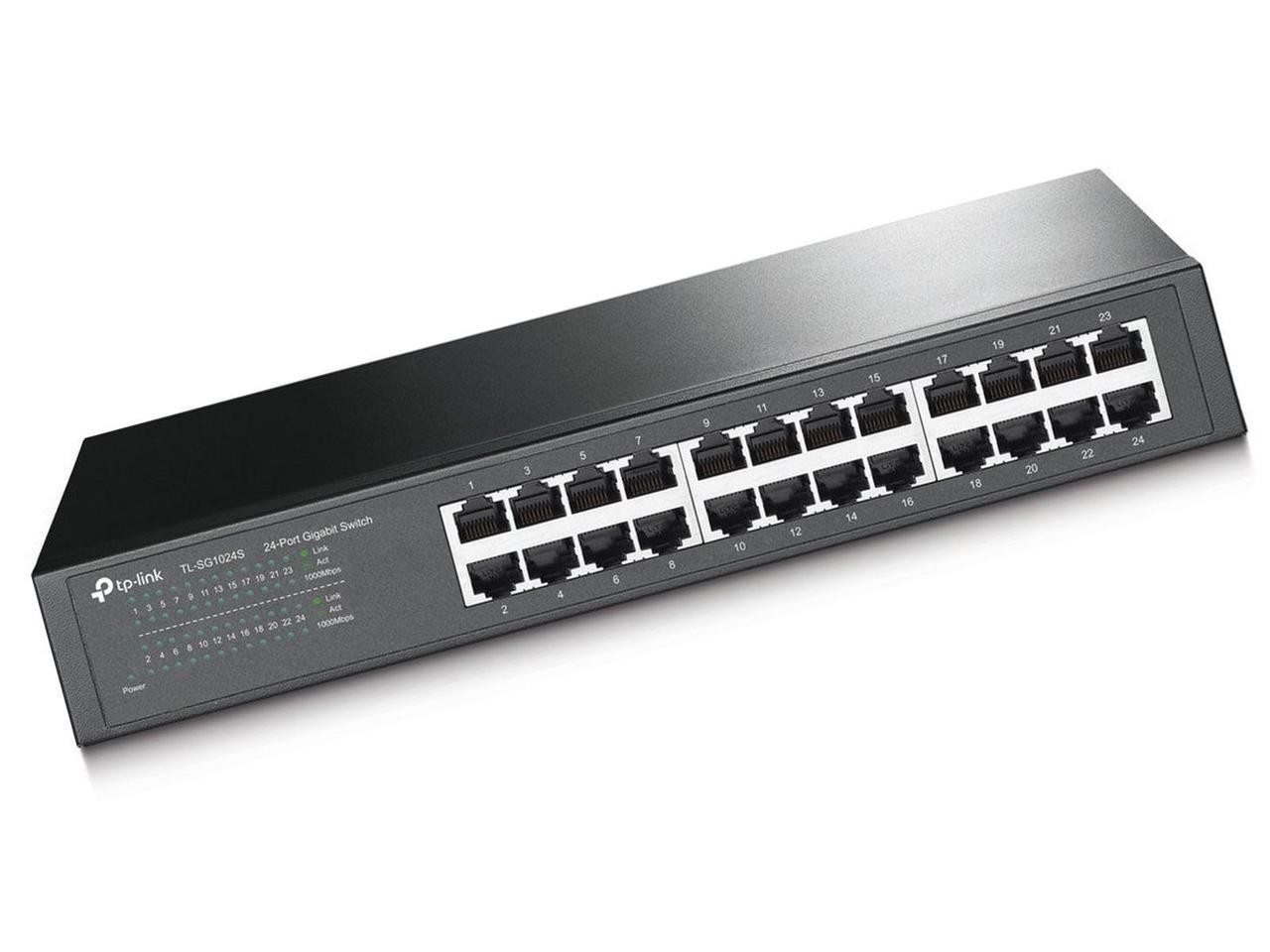

TP-Link TL-SG1024S 24 Port Unmanaged Gigabit Rackmount Switch
Sku
TL-SG1024S

Beschikbaarheid: In voorraad

US$ 128,00
OF

  • 24 x Gigabit Ethernet Ports

  • 48 Gb/s Switching Capacity

  • 35.7 Mpps Forwarding Rate

  • Innovative Energy-Efficient Technology





Add the TL-SG1024S 24-Port Gigabit Unmanaged Switch from TP-Link to your network and take advantage of energy-efficient technology designed to reduce power consumption. This switch comes equipped with 24 Gigabit Ethernet ports with support for 802.3x flow control for full-duplex mode and backpressure for half-duplex mode. Additional functions include a non-blocking switching architecture, auto-MDI/MDIX support, MAC address auto-learning and auto-aging, and much more. Once installed, the TL-SG1024S network switch features a 48 Gb/s switching capacity and a 35.7 Mpps forwarding rate to ensure the switch operates smoothly even under demanding network conditions.











  • Innovative energy-efficient technology saves power consumption

  • Supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode

  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput

  • 48 Gb/s switching capacity

  • Auto-MDI/MDIX eliminates the need for crossover cables

  • Supports MAC address auto-learning and auto-aging

  • Support the port n-way auto-negotiation, store-and-forward

  • Compact size design for desktops, rack-mountable

  • Plug-and-play design simplifies installation






Secured and trusted checkout with

Omschrijving

Details

Hardware
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 10/100/1000 Mb/s RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m)
100BASE-TX/1000BASE-T: UTP category 5, 5e, or above cable (maximum 328' / 100 m)
Fan Quantity Fanless
Power Supply 100-240; 50/60 Hz
Power Consumption Maximum: 13.1 W (220 V / 50 Hz)
Software
Switching Capacity 48 Gb/s
Packet Forwarding Rate 35.7 Mpps
MAC Address Table 8 K
Jumbo Frame 10 KB
QoS (Quality of Service) 802.1p / DSCP QoS
Only for V11 and later version
Green Technology Yes
Transfer Method Store-and-forward
Other Specifications
Certifications FCC, CE, RoHS
Temperature & Humidity Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing
Dimensions 17.3 x 7.1 x 1.7" / 440 x 180 x 44 mm
Weight Not specified by manufacturer
Packaging Info
Package Weight 4.3 lb
Box Dimensions (LxWxH) 15.85 x 10 x 3.25"
